Materials

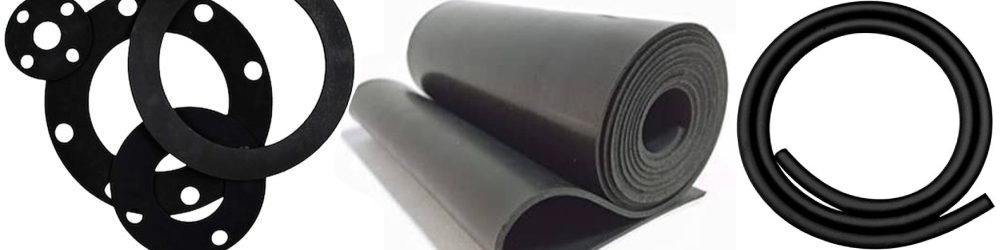

Viton
Smooth flueroelastomer rubber
-
Temperature:
Recommended max >-45 C to 300 C -
Pressure:
Recommended max > On request -
Specific Compliance:
General chemical purpose -
General Uses:
Wide range of chemical applications -
Sheet Size:
1000 wide x mtr recommended -
Thickness Range:
1,5mm, 3mm, 4,5mm and 6mm
Typical Properties
- Tensile strength: 10Mpa
- Compression set: 20%
- Hardness (IRHD): 75 shore
- Elongation at break: 200%
- Specific gravity: 2,0

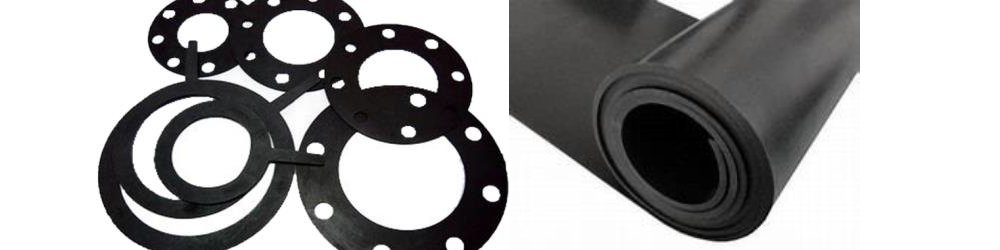

General Purpose 40 Shore - GP40
A general purpose soft black natural rubber
-
Temperature:
Recommended max > 80 C -
Pressure:
Recommended max > 1000 kpa (10) -
Specific Compliance:
General purpose -
General Uses:
Flange gaskets for fiber glass flanges or low pressure Steel flanges. Scraper blades, matsand sleeves. -
Sheet Size:
1200 wide x mtr recommended -
Thickness Range:
1,5mm, 3mm, 4,5mm, 6mm and 10mm
Typical Properties
- Tensile strength: 13,34 Mn / M
- Compression set: 25,8%
- Hardness (IRHD): 41 SHORE
- Elongation at break: 750%
- Specific gravity: 1,13

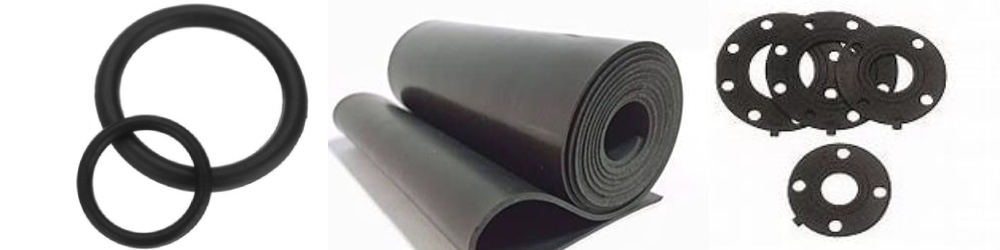

General Purpose 60 Shore - GP60
A general purpose black natural rubber
-
Temperature:
Recommended max > 80 C -
Pressure:
Recommended max > 1000 kpa (10) -
Specific Compliance:
General purpose -
General Uses:
Flange gaskets, scraper blades and skirt rubber -
Sheet Size:
1200 wide x mtr recommended -
Thickness Range:
1,5mm, 3mm, 4,5mm, 6mm and 10mm
Typical Properties
- Tensile strength: 4,51 Mn / M
- Compression set: 64,8%
- Hardness (IRHD): 64 SHORE
- Elongation at break: 460%
- Specific gravity: 1,60

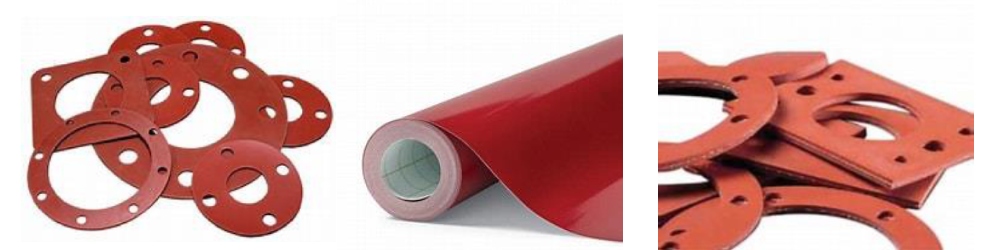

Red Neoprne
A general purpose neoprenel rubber
-
Temperature:
Recommended max > 110 C -
Pressure:
Recommended max > 1000 kpa (10) -
Specific Compliance:
General purpose -
General Uses:
A good temperature and wide rage of chemical resistant. For use as gasket -
Sheet Size:
1200 wide x mtr recommended -
Thickness Range:
0.8mm, 1.5mm, 3mm, 4,5mm, 6mm and 10mm
Typical Properties
- Tensile strength: 3,89 Mn / M
- Compression set: 66,6%
- Hardness (IRHD): 62 SHORE
- Elongation at break: 595%
- Specific gravity: 1,60

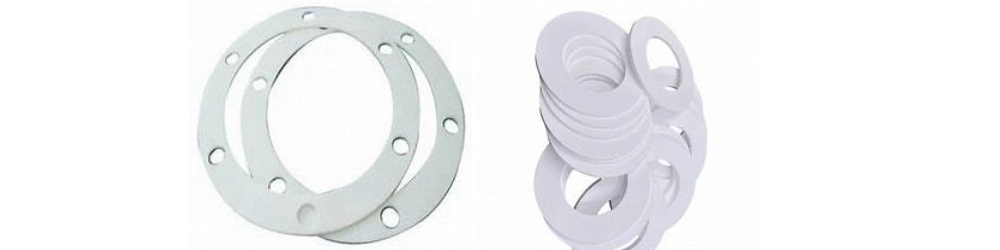

Teflon / PTFE / Expanded PTFE and Tape
White hard but flexible polytrafluorethylene plastic
-
Temperature:
Recommended max > 260 C -
Pressure:
Recommended max > on request -
Specific Compliance:
General high temperature and chemical purposes -
General Uses:
Barring pads, envelope gaskets “O” rings and tapes -
Sheet Size:
1200 wide x mtr recommended -
Thickness Range:
0.5mm to 5mm
Typical Properties
- Hardness (IRHD): 60 SHORE
- Specific gravity: 2.2
- Resistance: Corrosive Chemicals, Non flammable, Non Stick, Low coefficient of friction

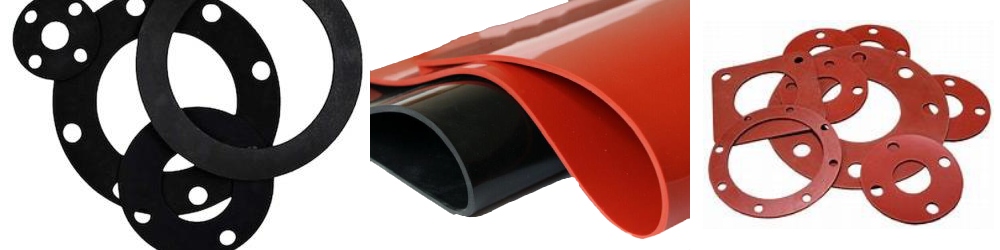

Silicon
Red, Black silicone – Very good Ozone and diluted acid resistance
-
Temperature:
Recommended max > 60 C + 200C -
Pressure:
Recommended max > (10 Bar) -
Specific Compliance:
General purpose -
General Uses:
Food Grade, Acid -
Sheet Size:
1200 x 1000 -
Thickness Range:
1mm to 10mm
Typical Properties
- Tensile strength: MPA 7.0
- Compression set:34.00
- Hardness +- 5 (IRHD): 60
- Elongation at break: 350%
- Specific gravity: 1,25

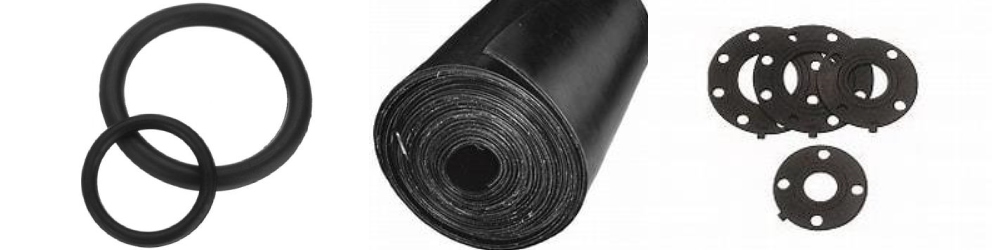

Rubber Insertion
A Fabric reinforced black natural rubber sheet.
-
Temperature:
Recommended max > 80 C -
Pressure:
Recommended max > 1600 kpa (16 Bar) -
Specific Compliance:
General purpose -
General Uses:
Extensively for flange gaskets, stripes and mats -
Sheet Size:
1200 x mtr recommended -
Thickness Range:
1, 5mm, 3mm, 4.5mm, 6mm and 8mm
Typical Properties
- Tensile strength: 3.64 Mn / M2
- Compression set: 40.3%
- Hardness +- 5 (IRHD): 67 SHORE
- Elongation at break: 260%
- Specific gravity: 1,48

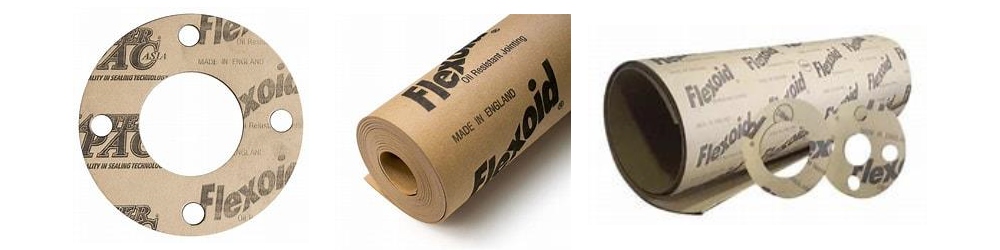

Flexoid / Velamoid / Stelite
Cellulose fiber impregnated with glue/ glycerin composition
-
Temperature:
Recommended max > 120 C -
Pressure:
Recommended low pressure -
Specific Compliance:
General purpose -
General Uses:
Applicable for oil and water areas with low pressure -
Sheet Size:
1000 wide x mtr recommended -
Thickness Range:
0.25, 0.4mm, 1mm, 1.5mm and 3mm
Typical Properties
- Tensile strength: 160kg / cm
- Compression set: 35%
- Elongation at break: 44%

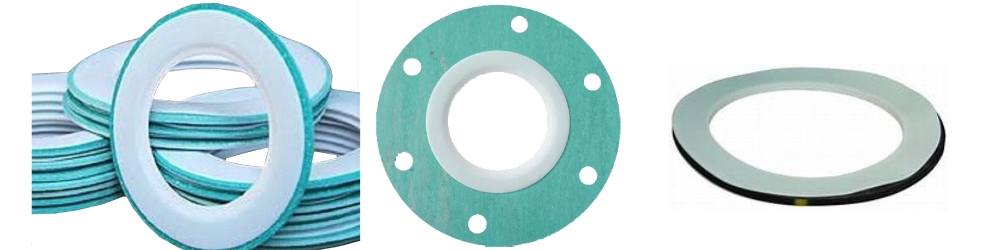

Envelope Gaskets
White Hard but flexible poly trifluoroethylamine plastic
-
Temperature:
Recommended max > 260 C TO -180C -
Pressure:
Recommended Max -
Specific Compliance:
Acid and high temperatures, chemical purposes -
General Uses:
Chemicals -
Sheet Size:
N/A -
Thickness Range:
0.5mm
Typical Properties
- Tensile strength: 20 Mn / M2
- Compression set: 50-60 SHORE
- Elongation at break: 250%

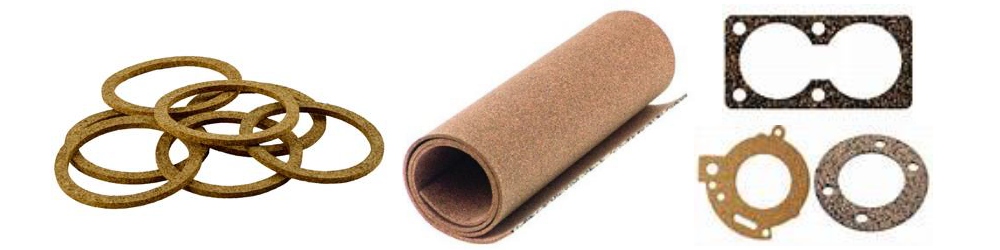

Nitrile Cork
Nitrile bonded cork is a high grade composition of cork granules and a nitrile binder
-
Temperature:
Recommended max > 120 C -
Pressure:
Recommended low pressure -
General Uses:
Suitable for a wide range of oils and certain chemicals -
Sheet Size:
1000 x 1000 -
Thickness Range:
1,6mm, 3mm, 4.5mm, 6mm and 6mm
Typical Properties
- Tensile strength: 11 kgs / cm
- Compression set: 40- 50 % @ 28 bar
- Hardness +- 5 (IRHD): 70 SHORE
- Elongation at break: 75%
- Equivalent to: NF 718 NL 60

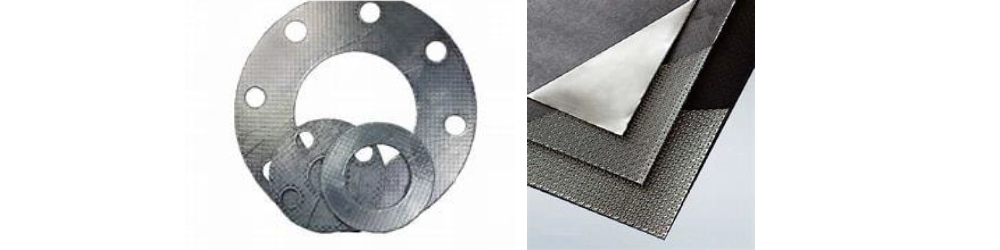

Graphite
Excellent resistance to Steam
-
Temperature:
Recommended max > + 140 C -
Pressure:
Recommended max > 40 Bar -
General Uses:
Extensively for flange gaskets, strips and mats -
Sheet Size:
1,5mm, 1,5mm -
Thickness Range:
1,5mm, 3mm
General Properties
- Excellent resistance to Steam
- Resistance to virtually all media
- Outstanding resistance to high and low temperatures
- High compressibility
- Good leakage properties
- Unlimited storage life

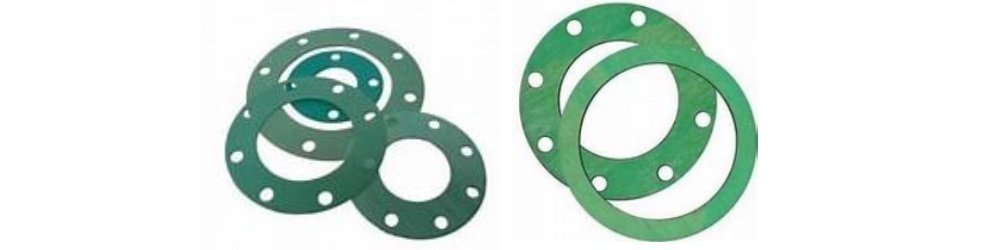

Non Asbestos Gaskets
Non-Asbestos Economy
Aramid fibers bound with NBR rubber
-
Temperature:
Recommended max > 200 C -
Resistance:
Water, steam, oils, solvents and gases. -
Sheet Size:
1500 x 2000 -
Thickness Range:
0.4mm, 0,8mm, 1mm, 1,5mm,2mm and 3mm
Non-Asbestos Glass (GL)
Glass fibers bound with NBR rubber
-
Temperature:
Recommended max > 350 C -
Resistance:
Water, steam, oils, solvents and gases. -
Sheet Size:
1500 x 2000 -
Thickness Range:
1,5mm and 3mm
Non-Asbestos Acid
Aramid fibers bounds with CSM
-
Temperature:
Recommendations max > 200 C -
Resistance:
Water, steam , oils, acids, solvents and gases -
Sheet Size:
1500 x 2000 -
Thickness Range:
1,5mm and 3mm
